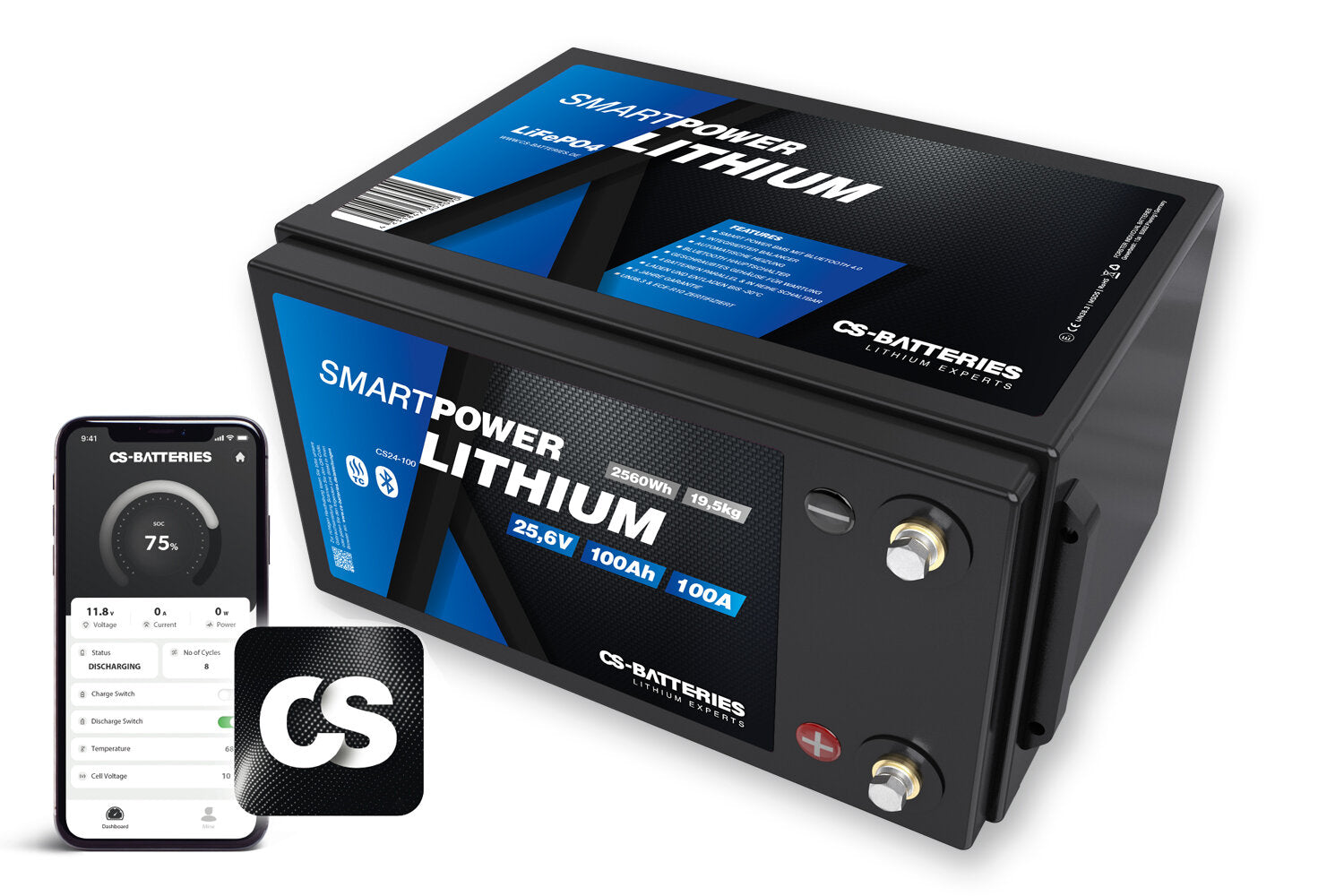

SMART POWER Lithium 100Ah | 25.6V | 2560Wh | LiFePO4 battery with Bluetooth 5.0 | integrated 100A-200ABMS | heating
Universal, strong, affordable.
With our new 100Ah SMART Power battery High-quality 100Ah Prismatic LiFePO4 Smart cells
We offer you a LiFePo4 lithium supply battery at a smart price. Designed and suitable for motorhomes, vans, caravans, boats, fishing gear, or energy storage.
TOP FEATURES:
High-quality 100Ah Prismatic LiFePO4 Smart cells
SMART Power BMS with Bluetooth 5.0
Integrated cell balancer
Screwed housing for service
4 batteries can be connected in parallel or in series
On/off switch via app
5000 cycles
Housing according to DIN standard
Power Battery Management System:
The newly developed Power Battery Management System is based on the latest microcontroller technology. This system monitors and protects your battery from damage during every use. The BMS is individually connected to each cell and continuously monitors it.
CS Batteries App:
With the CS Batteries app, you can directly access the battery management system built into the battery via Bluetooth. This allows you to monitor the battery parameters and optimally plan your trip by displaying the remaining battery life.
The data can be conveniently displayed on a smartphone or tablet (Android / IOS).
5-year manufacturer's warranty
|
Data / Order No.: |
CS24-100 |
|
EAN |
4250561731516 |
|
capacity |
100Ah |
|
Replaces lead-gel-AGM battery |
200Ah |
|
Nominal voltage |
25.6V |
|
Energy content |
2560Wh |
|
Operating voltage |
22.0 - 29.2V |
|
Application parallel circuit |
Yes, max. 4 pieces of the same type! |
|
Application series circuit |
yes, max. 48V! |
|
Cell technology |
LiFePO4 / LFP |
|
Cell type |
Prismatic Smart Cells (PSCs) |
|
Charging programs |
CC/CV | IU | IUoU | Lead acid |
|
Final charging voltage |
28.4 - 29.2V |
|
Trickle charging |
26.8V |
|
Maximum charging current |
50A |
|
Standard charging current |
20A |
|
Max. discharge current / 3 sec. |
200A |
|
Continuous discharge current |
100A |
|
Battery shutdown |
yes, via Bluetooth / APP |
|
BMS Battery Management System |
integrated |
|
Remote monitoring via Bluetooth APP |
yes, Bluetooth APP built in |
|
Remote monitoring/measuring shunt integrated |
no |
|
Protection class |
IP52 |
|

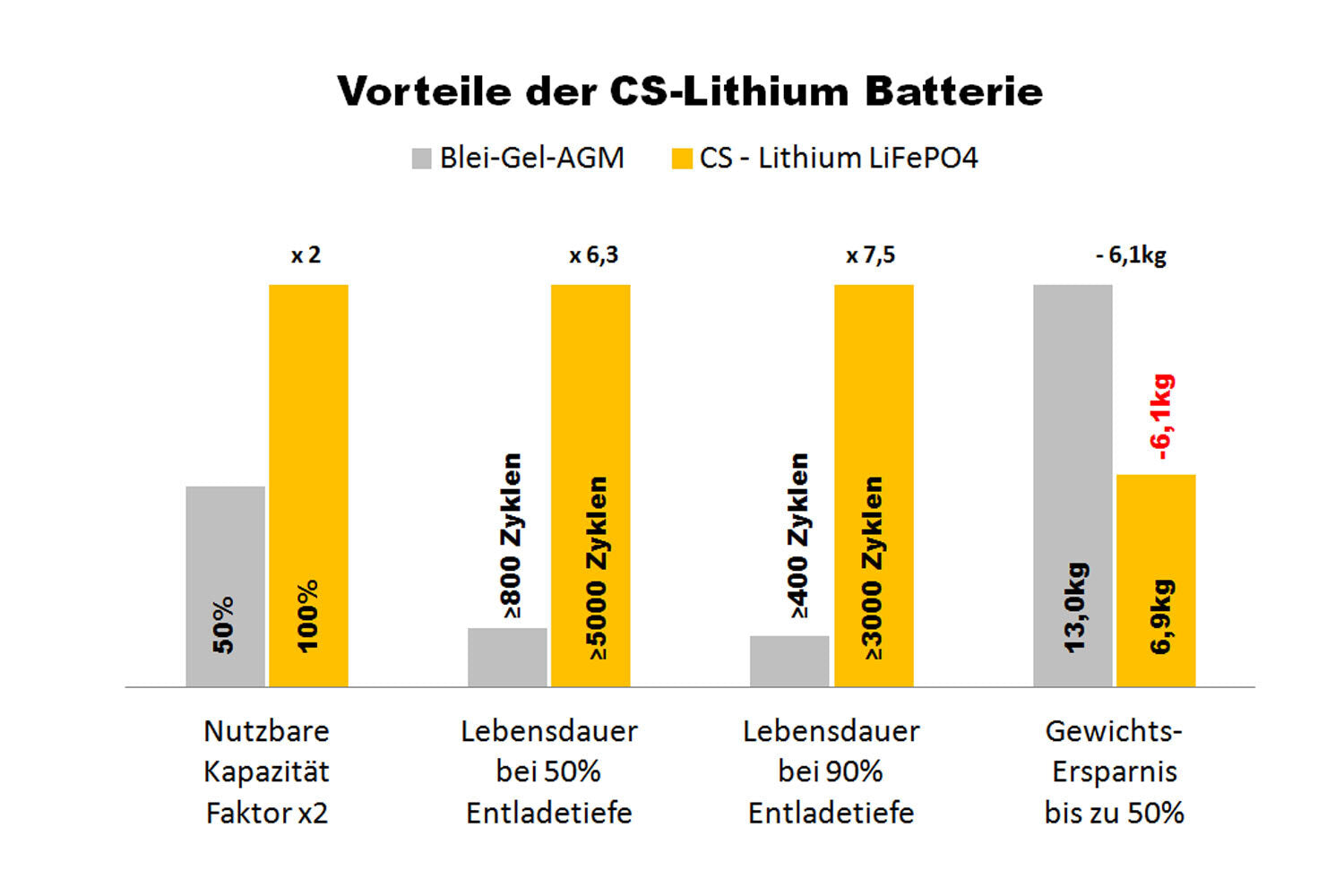

Cycles / lifetime at 50% DoD |
5000 |
|
Cycles / lifetime at 80% DoD |
3500 |
|
Cycles / lifetime at 90% DoD |
3000 |
|
Temperature when charging |
-30°C to +60°C |
|
Temperature at discharge |
-30°C to +60°C |
|
Recommended storage temperature |
-20°C to +60°C |
|
Automatic cell heating |
installed |
|
storage |
80 - 100% charged / when not in use, charge battery every 6 months |
|
Self-discharge |
2-3% / month |
|

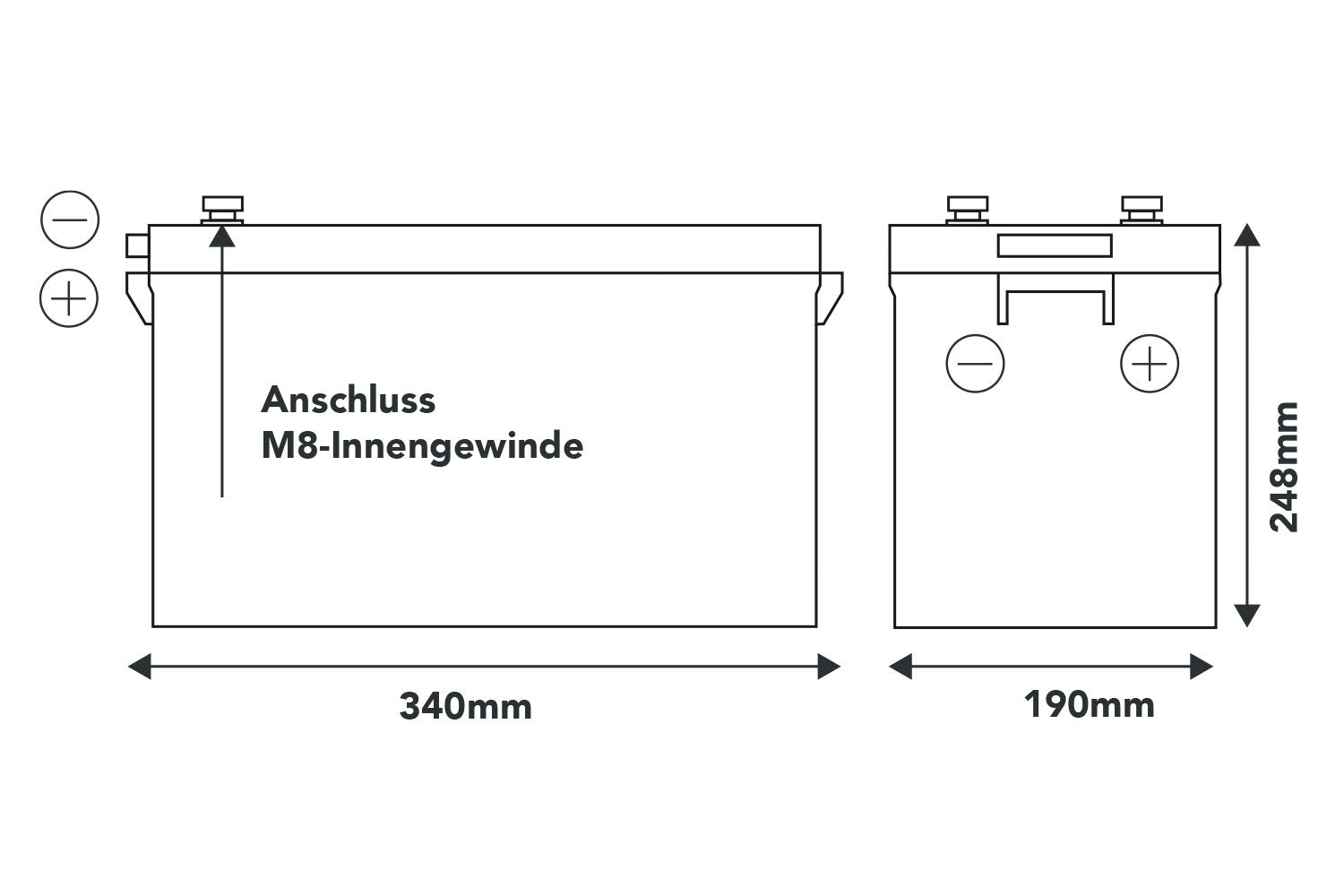

Connection |
M8 internal thread |
|
Positive pole arrangement |
side or top |
|
Dimensions (battery standing) |
340 x 190 x 248 mm |
|
Dimensions (battery lying down) |
340 x 248 x 190 mm |
|
Installation position |
any, standing, lying, upright |
|
CANbus interface (not applicable) |
no |
|
Weight |
19.5kg |
|
guarantee |
5 years |
|
Certification |
UN38.3 | MSDS | CE | RoHS | ECE-R10 | E1 |
