RAM Mounts swivel arm with universal plate for marine GPS - horizontal base, universal plate (50.8 x 158.9 mm), arm length approx. 150 mm, in polybag

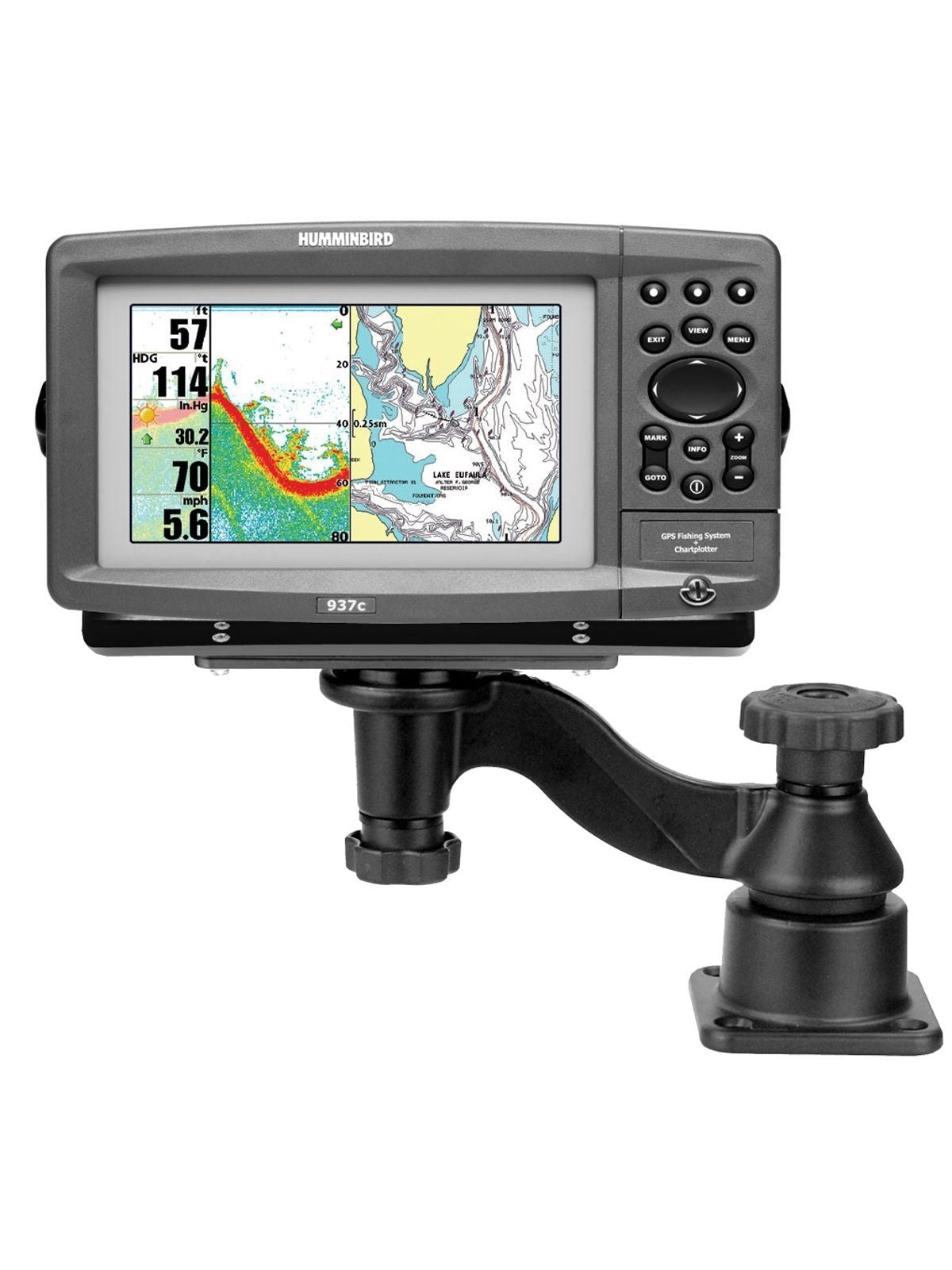

This RAM Mounts swivel arm construction - RAM-109HU - with horizontal mounting base is ideal for use on boats for the secure attachment of GPS devices, fish finders, etc.

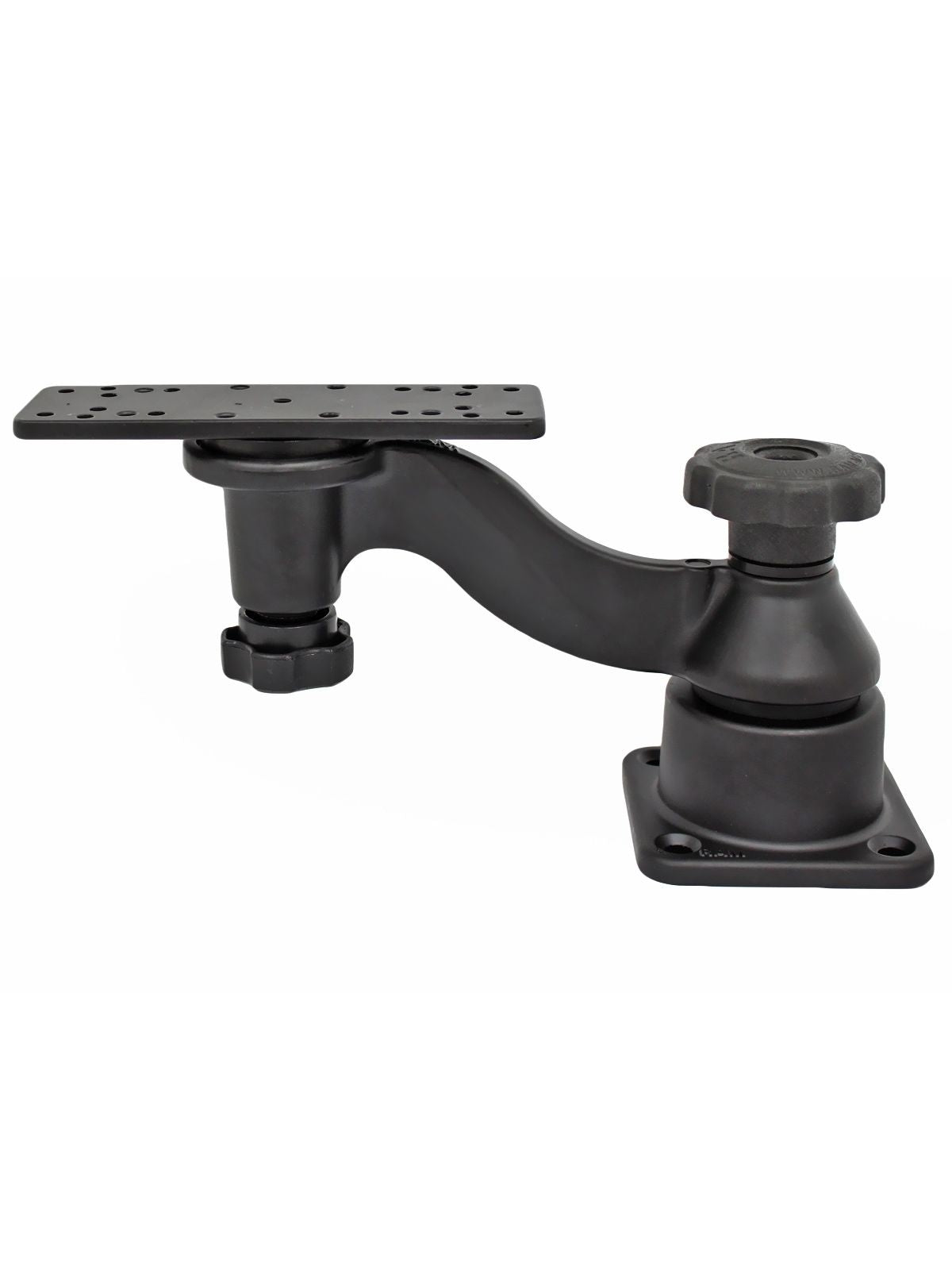

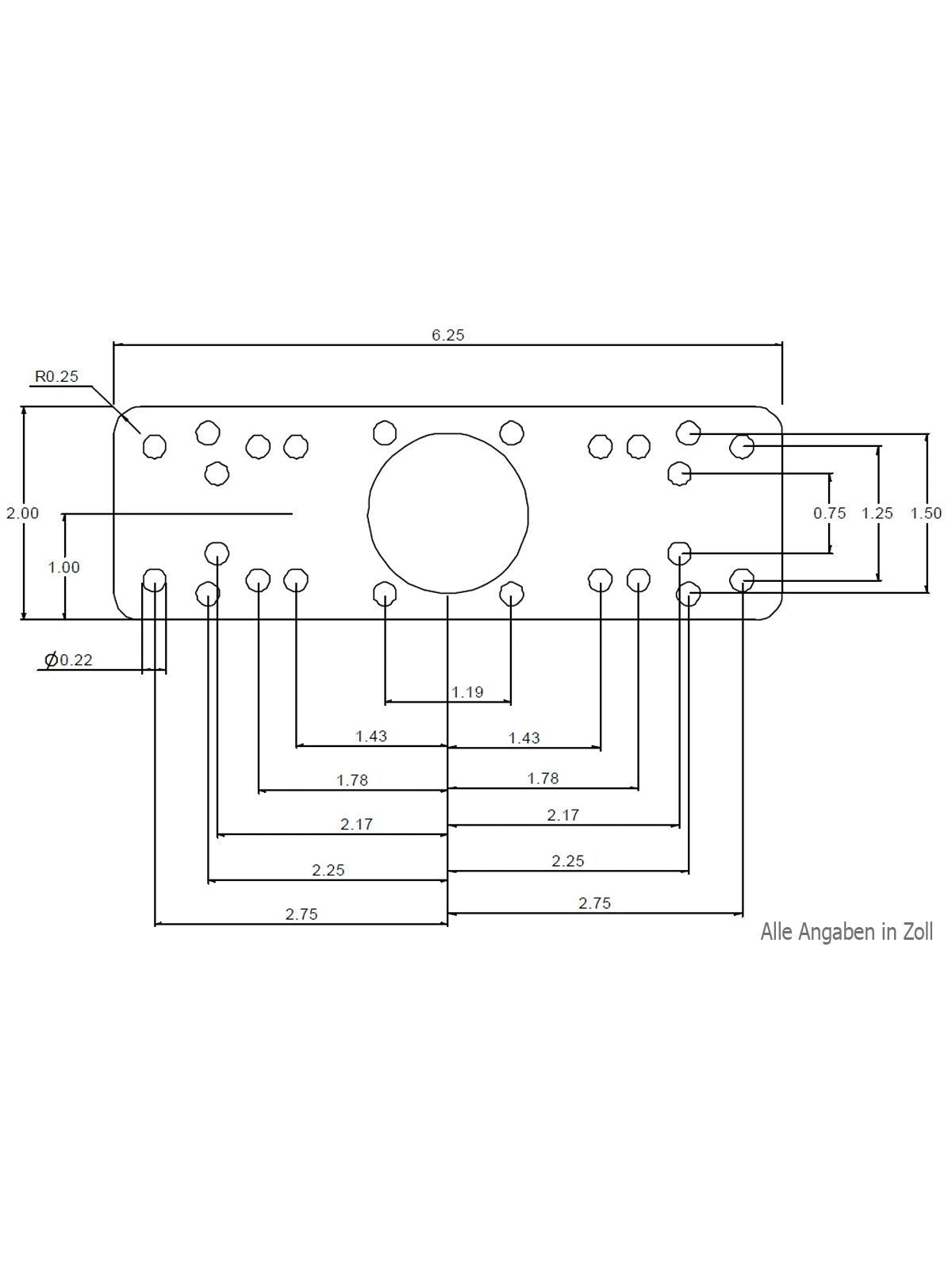

The entire structure consists of a horizontal mounting base, a pivot arm approximately 150 mm long, and a universal mounting plate (158 x 50 mm). The pivot pins on both sides of the pivot arm allow for complete rotation of 360°.

Dimensions:

·       Length of the swivel arm: 152.4 mm

·       Total length of the structure: 273.1 mm

·       Total height of the structure: 142.2 mm

Load capacity of the structure: up to max. 4.5 kg

Material: powder-coated aluminum
Color: black
Weight: approx. 950 g
