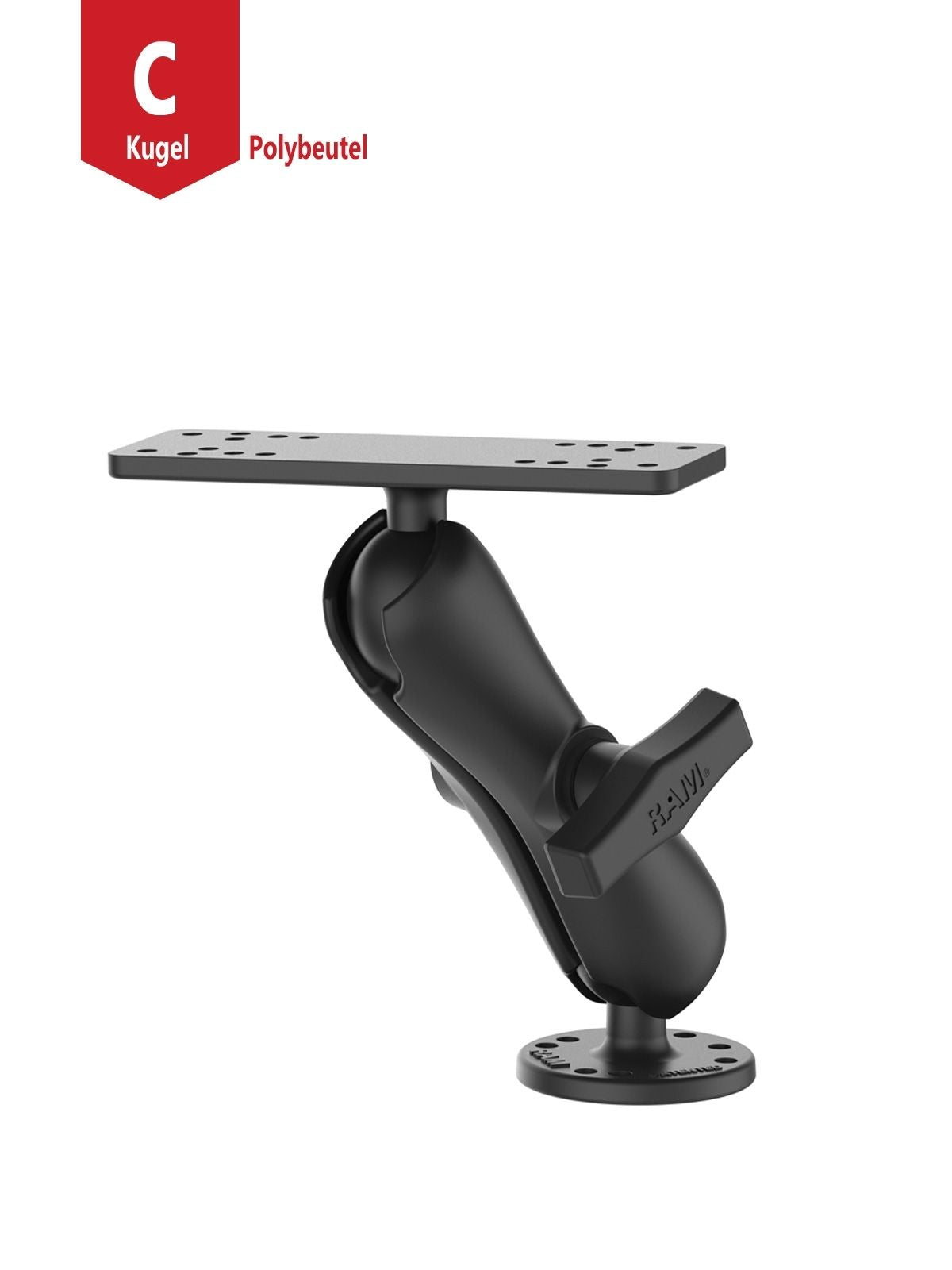

RAM Mounts mounting kit - round base plate (AMPS), middle connecting arm, adapter plate (with universal hole pattern), C-ball (1.5 inch), in polybag
,%20a%20medium%20connecting%20arm%20(approx.%20140%20mm),%20and%20a%20universal%20plate%20with%20various%20hole%20patterns.%20The%20unive...
){kind=link}

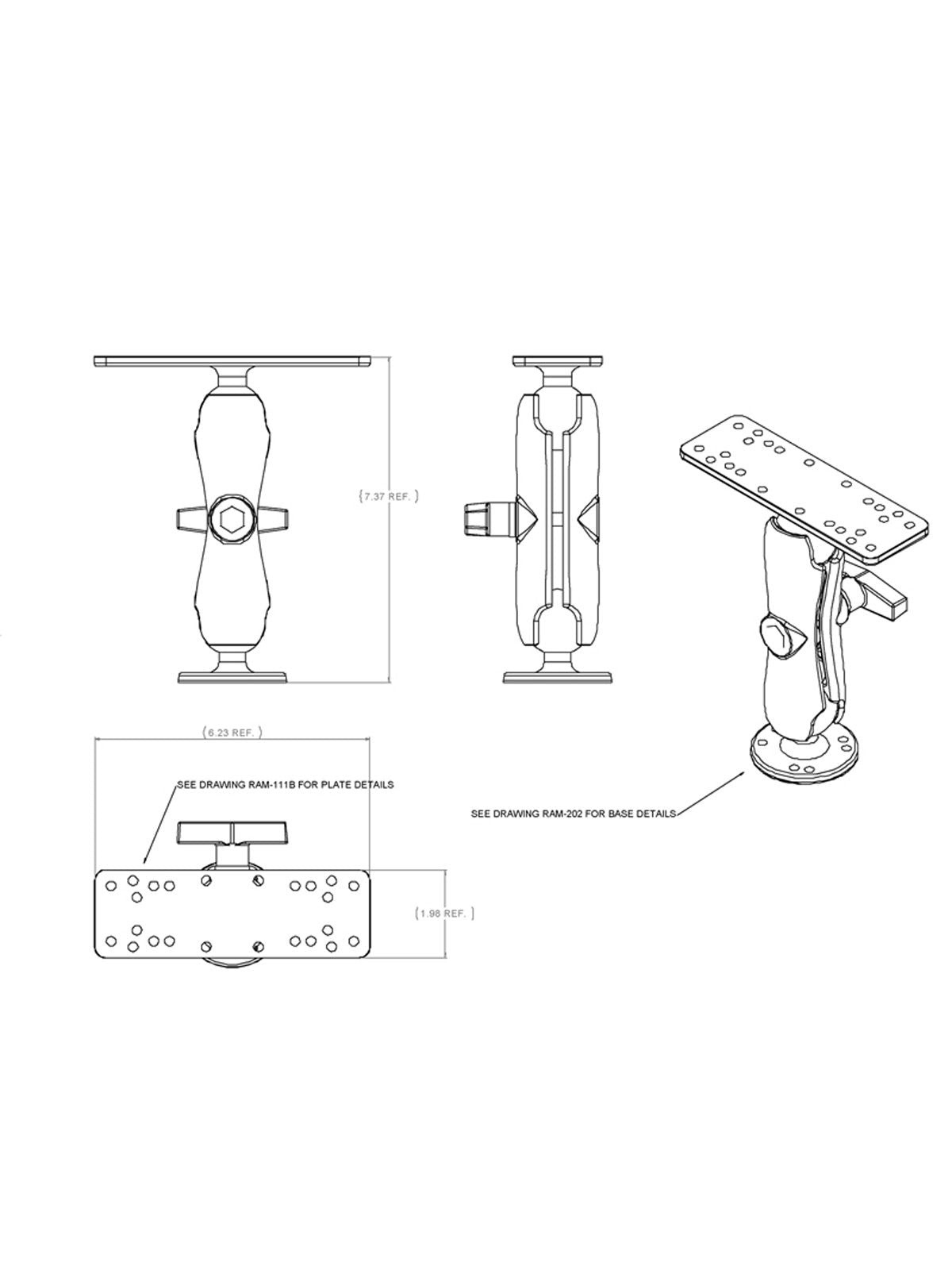

RAM Mounts Universal Electronics Kit consists of a round base plate (AMPS hole pattern), a medium connecting arm (approx. 140 mm), and a universal plate with various hole patterns. The universal plate has a footprint of 50.8 x 158.75 mm. The hole patterns included on the universal plate are suitable for many electronic devices, such as marine GPS, CB radios, HAM radios, and gimbal clamps.
When tightly screwed, the entire mount has a weight capacity of up to 1.8 kg.
Material: powder-coated aluminum
Dimensions of the entire mount: approx. 190 mm high
Base plate diameter: 63.5 mm, with AMPS hole pattern
Length of connecting arm: 142.88 mm
Ball diameter: 38.1 mm (1.5 inches, C-ball)
Color: black
Weight: approx. 572 g

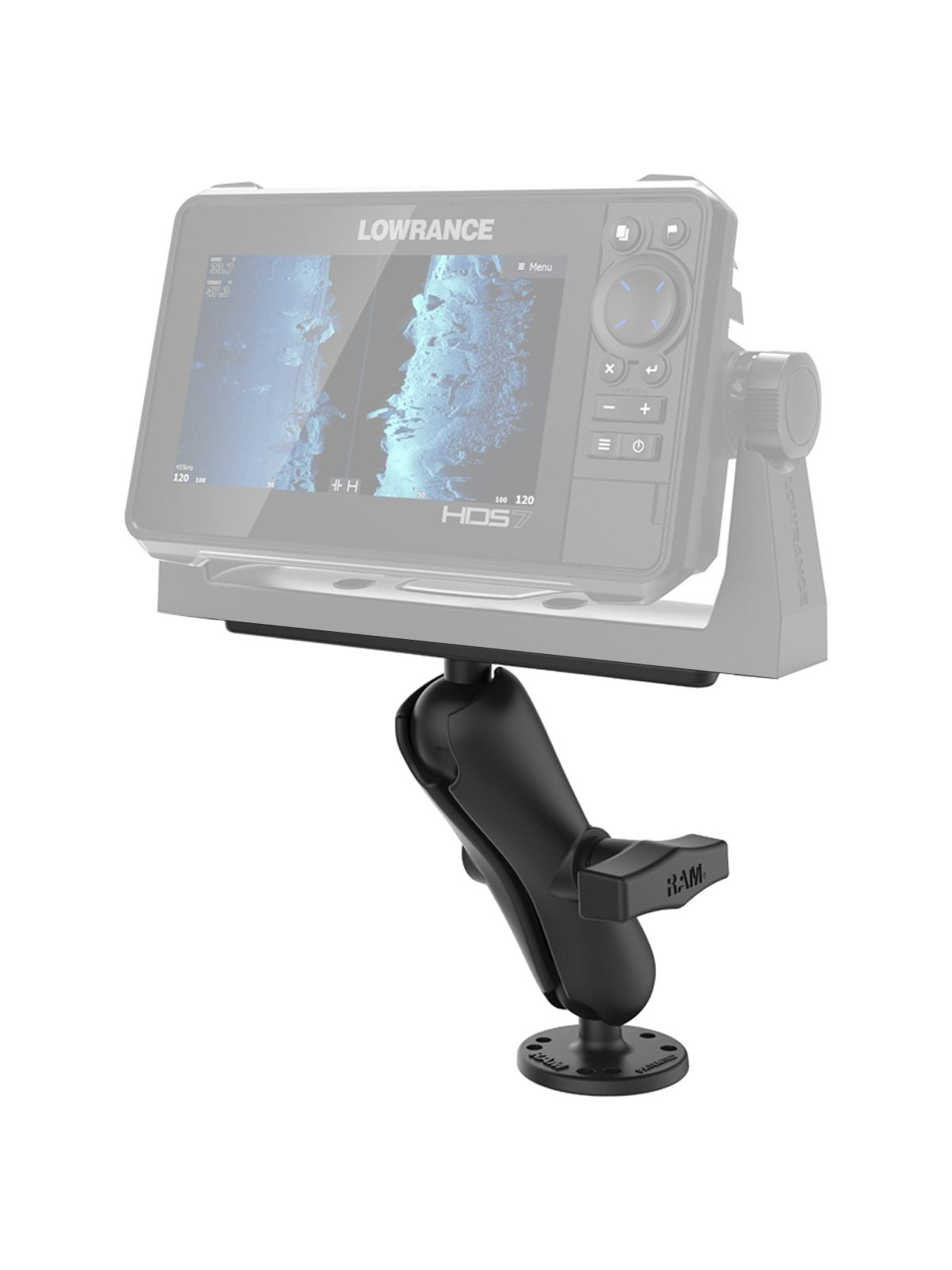

Note: The devices shown are not included in the delivery. Only the RAM Mounts Universal Electronics Kit is included!
| Device manufacturer: | Garmin |
|---|---|
| Ball size: | C-ball (1.5 inches up to 1.8 kg) |
| Marine: | device holder |
| Manufacturer: | National Products Inc. - 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Phone: +49 30-917470-70 |
| Responsible: | Managing director Kostja Dümke, info@rammounts.de, 030-917471-1130 |
| Warning: | Keep plastic bags away from children – danger of suffocation! |
