Railblaza Fish Finder Mount R-Lock R, platform echo sounder (160 x 60 mm)

Fish-Finder Mount R-Lock R – For wide echo sounders with U-bracket

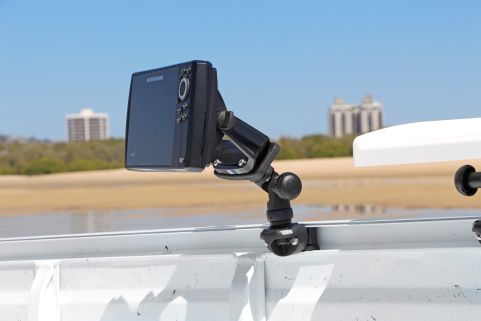

The Fish Finder Mount R-Lock R was specially developed for large depth sounders and fish finders with a U-shaped bracket and landscape display . The mount offers a stable, versatile, adjustable solution so your monitor is always optimally aligned – no matter the angle.

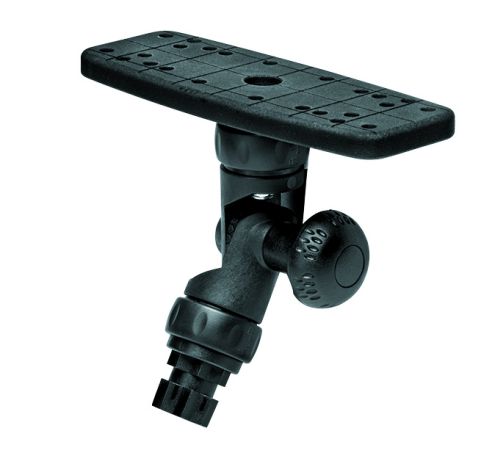

The bracket mount for your depth sounder is attached with screws directly to the pre-drilled platform surface (160 × 60 mm) . Thanks to the R-Lock system, the mount can rotate 360° on the upper and lower axes and can be securely locked with a locking ring. The middle axis also allows tilting in 15° increments .

The bracket can be flexibly mounted on horizontal or vertical surfaces – ideal for boats with different mounting conditions.

Highlights:
✔️ Suitable for large landscape format fish finders with U-bracket
✔️ 360° rotatable top & bottom (R-Lock system)
✔️ Center axis tiltable in 15° steps
✔️ Platform area: 160 × 60 mm
✔️ Universal mounting on horizontal & vertical surfaces
✔️ Robust and vibration-proof construction
✔️ Easy alignment via 3 axes

Total height: 170 mm

We recommend mounting only devices up to 9 inches. For all larger screens, we recommend the Hexx mount.
