DS18 Radio MRX1
DS18 MRX1
Waterproof marine head unit for maximum performance, precision and durability
The MRX1 from DS18 is the ultimate all-in-one head unit for boats and yachts that value premium sound, durability, and ease of use.

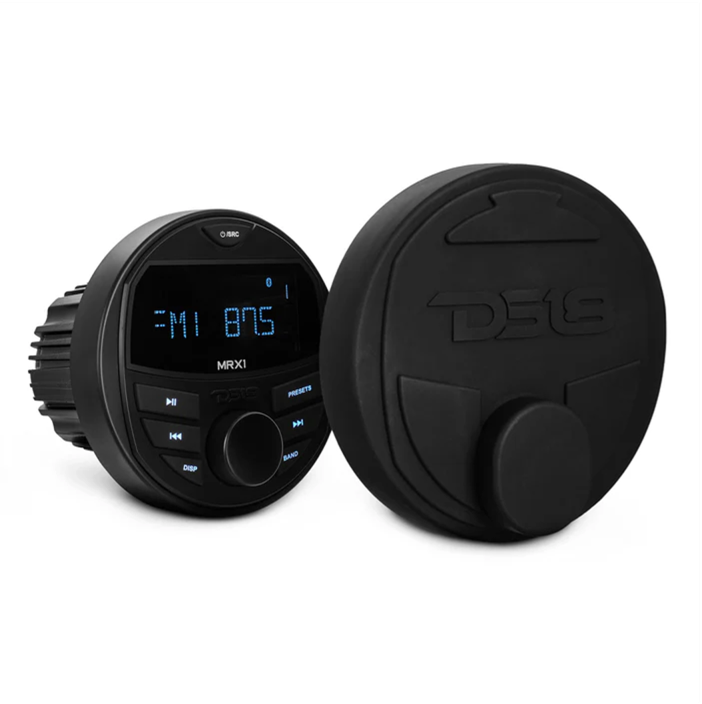

This powerful device was specifically designed for use on the water and can withstand even the harshest conditions. With IP65 water resistance, UV protection, salt spray shielding, and a special conformal coating, the MRX1 is ideally suited for marine use. An additional silicone cover protects the device when not in use.
Thanks to Bluetooth 4.2 connectivity, you can wirelessly connect your smartphone or any other Bluetooth-enabled device and play your favorite music directly through the MRX1 head unit. Enjoy precise sound control with individually adjustable bass, treble, balance, fading, equalizer (EQ), volume, and subwoofer crossover settings. Choose from preset EQ modes such as FLAT, POP, ROCK, and CLASSICAL, or deactivate the EQ for a personalized sound experience.
The MRX1 features a built-in AM/FM radio receiver, so you can enjoy your favorite stations anytime—perfect for long boat trips. CT synchronization also enables automatic time adjustment via radio frequencies, ensuring the time is always accurate.

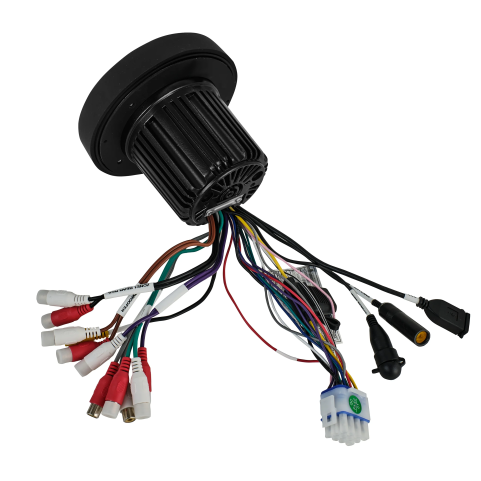

With its extensive connectivity options, the MRX1 can be easily integrated into existing audio systems. Three high-quality outputs (front, rear, and subwoofer) allow for the connection of additional speakers or amplifiers. The USB port not only serves for music playback but also reliably charges your device with a 2A charging current.
With an impedance of 4 ohms, the MRX1 delivers 4x15W RMS, while at 2 ohms it achieves 4x20W RMS – for a powerful onboard sound experience. The 4V preamp outputs ensure excellent sound quality and provide the necessary voltage for optimal audio performance.
Whether you enjoy relaxing music on a quiet boat trip or want powerful sounds for the next party at sea - the DS18 MRX1 is the perfect companion for an incomparable sound experience on the water!
Technical data
| Operating voltage | 10.5 – 16 volts |
|---|---|
| Maximum power consumption | 10 amps |
| Low voltage warning | Yes (< 10.8V) |
| Water resistance | IP56 |
| UV/salt protection | Yes |
| Keys | Rubber + Backlight (Blue) |
Display / Monitor
| Screen size | 2.75 inches (diagonal) |
|---|---|
| Screen type | Gorilla Glass with OCA full bonding |
| Pixels / Resolution | LCD dots |
| Display type | Negative VA display |
| Backlight | Blue LED |
Audio
| Maximum output power (peak) | 4x40W @ 2Ohm (14.4V) |
|---|---|
| Continuous output power (RMS) | 4x15W @ 4Ohm / 4x20W @ 2Ohm (14.4V) |
| Minimum impedance | 2 ohms / channel |
| Frequency response | 20Hz – 20kHz |
tuner
| FM frequency range | USA: 87.5 – 107.9 MHz, EUR: 87.5 – 108 MHz |
|---|---|
| AM frequency range | USA: 530 - 1710 kHz, EUR: 522 - 1620 kHz |
Bluetooth specifications
| Bluetooth version | 4.2 |
|---|---|
| Bluetooth services | Audio streaming |
Dimensions
| Overall diameter (chassis) | 3.15 inches (80mm) |
|---|---|
| Mounting depth | 2.9 inches (74mm) |
