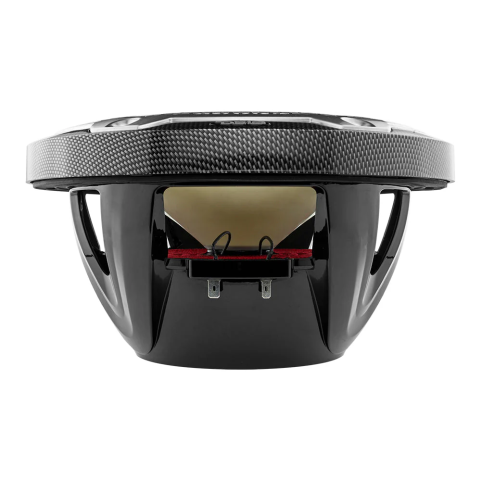

DS18 CF-10M
NXL 10" 2-Way Coaxial Marine Speakers with RGB LEDs – 200W RMS, 4 Ohm (Carbon Fiber)
Experience impressive sound and modern design with the DS18 CF-10M , which is specially designed for naval deployment were developed. With a IP65 certification are these speakers fully protected against water, salt spray, UV rays and extreme weather conditions , so they work reliably even under the toughest conditions. robust carbon fiber laminate construction with additional protective layers makes these speakers particularly resistant and durable – perfect for use on Boats and yachts .

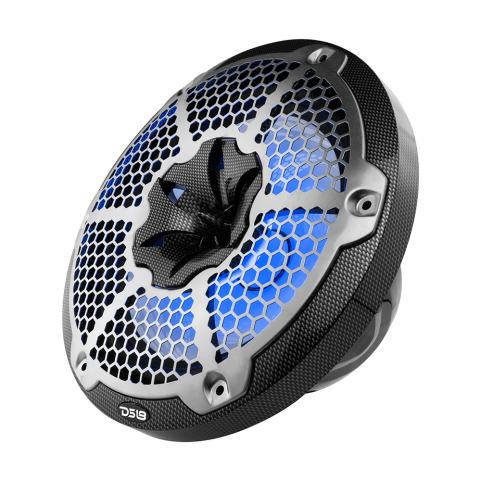

In addition to her outstanding sound quality impress the CF-10M with integrated RGB LED lighting that blends seamlessly into the design of your boat. The LEDs are integrated into the metal mesh grid and ensure a unique, customizable lighting that your Marine sound system visually enhances the waterproof membranes in combination with the fascinating lighting effects create a impressive visual atmosphere that makes every trip on the water even more special.
In matters Sound quality deliver the CF-10M delivers outstanding performance . 10-inch speakers produce a powerful, rich sound that is specially designed for open environments optimized With a RMS power of 200W and one maximum load capacity of 600W experience clear highs, powerful mids and deep bass with every song.
Thanks to the integrated tweeter and the powerful midrange woofer cover the CF-10M covers the entire frequency spectrum and ensure a precise and detailed reproduction . The exclusive metal mesh grille offers not only a stylish look , but also protects your speakers from mechanical influences and environmental damage .
Upgrade your marine sound system with the DS18 CF-10M and experience exceptional sound, modern design and impressive lighting effects – for a incomparable listening experience on the water .
Technical data - DS18 CF-10M
General specifications
specification |
Value |
Nominal diameter |
10" (254 mm) |
Nominal impedance |
4 ohms |
RMS power |
200 watts |
Maximum load capacity |
600 watts |
Sensitivity (1W/1m) |
94.3 dB |
Frequency response |
35 Hz – 20 kHz |
Recommended high-pass crossover |
50 Hz |
Housing properties
specification |
Value |
UV resistance |
Yes, 100% UV-stable |
Marine suitability |
IP65 |
RGB LED |
Integrated |
Grid type |
Composite with 316 stainless steel mesh |
Available in |
Carbon fiber texture gloss |
Woofer specifications
specification |
Value |
Voice coil diameter |
1.5" (38.6 mm) |
Voice coil former material |
Kapton |
Winding material |
CCAW |
Membrane material |
Polypropylene (UV-resistant) |
Beading material |
Butyl (rubber) |
Basket material |
High-temperature composite with UV protection |
Magnetic material |
Ferrite (Y35) + Neodymium (N35) |
Magnetic weight |
50 oz + 0.56 oz |
Tweeter specifications
specification |
Value |
Voice coil diameter |
1" (25 mm) |
Voice coil former material |
Kapton |
Winding material |
CCAW |
Membrane material |
PEN |
Magnetic material |
Neodymium (N38H) |
Magnetic weight |
0.51 oz |
Thiele & Small Parameter
specification |
Value |
Equivalent volume (Vas) |
197.13 L (6.96 ft³) |
Deflection (one-sided) (Vmax) |
6 mm |
Free-air resonance (Fs) |
42 Hz |
Mechanical quality factor (Qms) |
6,874 |
Electrical quality factor (Qes) |
0.838 |
Overall quality factor (Qts) |
0.747 |
Moving mass (Mms) |
11.37 g |
Compliance (Cms) |
1,264 mm/H |
Bl factor (Bl) |
3.4 |
Voice coil inductance (Le) |
0.60712 mH |
Membrane area (Sd) |
333.29 cm² |
DC resistance (Re) |
3.2 ohms |
Efficiency-Bandwidth Product (EBP) |
50.12 |
Dimensions
specification |
Value |
Total diameter |
10.7" (274 mm) |
Total depth |
5.7" (144.7 mm) |
Installation cutout |
8.75" (222 mm) |
Mounting depth |
4.2" (106.6 mm) |
Engine diameter |
5.3" (135 mm) |
